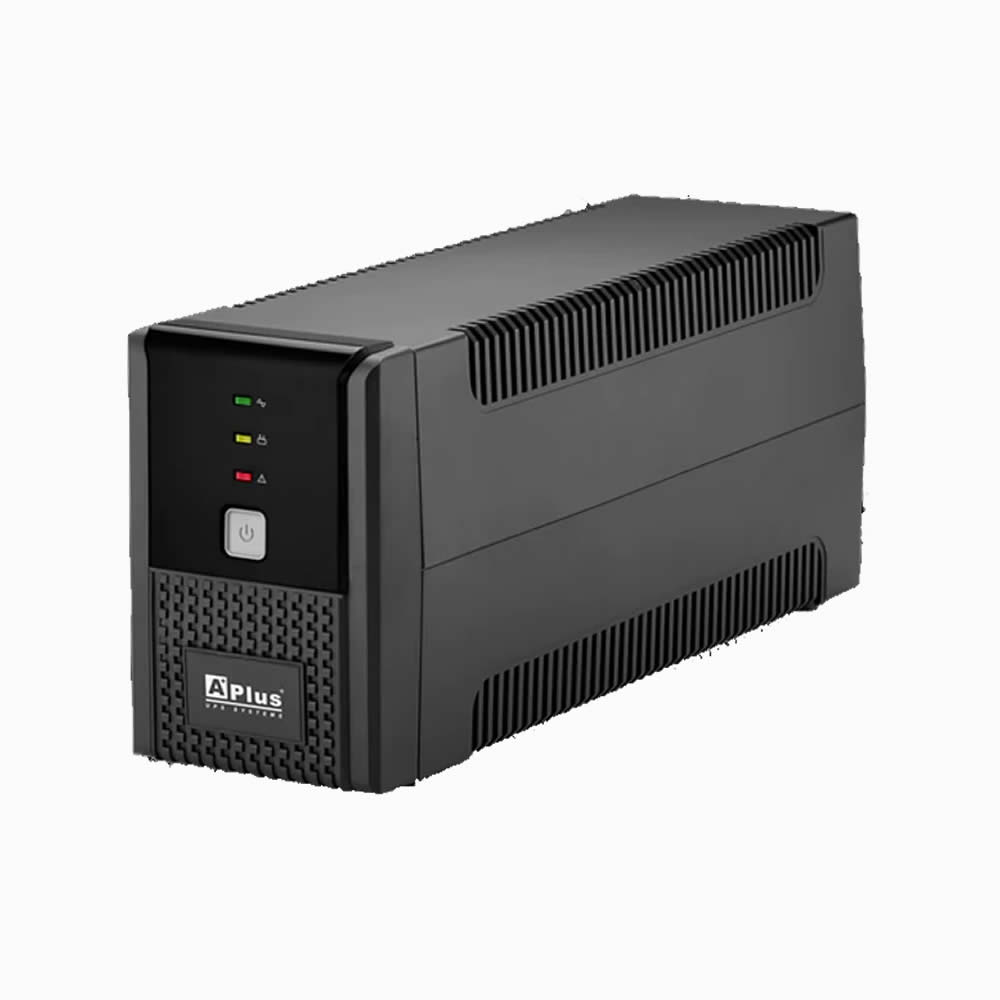

Optimize power reliability with the Aplus UPS 2000VA Line Interactive. Its versatile input voltage range (110-120VAC or 200-240VAC) ensures adaptability. The output maintains stability with voltage regulation of 10%, offering a simulated sinewave for consistent power. The 24V DC battery, with safety features, provides up to 5 hours recharge time. Audible alarms and compact design enhance monitoring and space efficiency. Ensure seamless power in diverse environments with this reliable UPS solution.
INPUT
VOLTAGE 110/115/120 VAC OR 200V/230/240 AC
VOLTAGE RANGE -30%+25%
FREQUENCY 50HZ OR 60Hz (AUTO SENSING)
OUTPUT
VOLTAGE REGULATION AC MODE/BATTERY NORMAL: 110/115/120 VAC OR 200V/230/240VAC +-10%
FREQUENCY AC MODE: 47-53Hz FOR 50Hz OR 57-63hZ FOR 60Hz; BATTERY MODE: 50Hz OR 60Hz +-1Hz
WAVEFORM SIMULATED SINEWAVE
TRANSFER TIME <6ms (TYPICAL)
BATTERY
VOLTAGE 24V DC
TYPE 12V/9AH*1PC
RECHARGE TIME 5 HOURS TO 90% AFTER COMPLETE DISCHARGE
SAFETY PROTECTION OVER CHARGE & OVER DISCHARGE PROTECTION
ALARM
BATTERY MODE TWO SHORT TONES EVERY 8 SECONDS
LOW BATTERY FOUR SHORT TONES EVERY SECOND
OVERLOAD RED LED: FLASHING, BUZZER: BEEPING CONTINUOUSLY
FAULT BEEPING CONTINUOUSLY
ENVIRONMENT
OPERATING TEMPERATURE 0 C TO 40 C
HUMITDITY 0-95% (NON CONDENSING)
ACOUSTIC NOISE <40dB AT 1M
PHYSICAL
DIMENSIONS 343 x 135 x 208mm
$7,690.00
INPUT
VOLTAGE 110/115/120 VAC OR 200V/230/240 AC
VOLTAGE RANGE -30%+25%
FREQUENCY 50HZ OR 60Hz (AUTO SENSING)
OUTPUT
VOLTAGE REGULATION AC MODE/BATTERY NORMAL: 110/115/120 VAC OR 200V/230/240VAC +-10%
FREQUENCY AC MODE: 47-53Hz FOR 50Hz OR 57-63hZ FOR 60Hz; BATTERY MODE: 50Hz OR 60Hz +-1Hz
WAVEFORM SIMULATED SINEWAVE
TRANSFER TIME <6ms (TYPICAL)
BATTERY
VOLTAGE 24V DC
TYPE 12V/9AH*1PC
RECHARGE TIME 5 HOURS TO 90% AFTER COMPLETE DISCHARGE
SAFETY PROTECTION OVER CHARGE & OVER DISCHARGE PROTECTION
ALARM
BATTERY MODE TWO SHORT TONES EVERY 8 SECONDS
LOW BATTERY FOUR SHORT TONES EVERY SECOND
OVERLOAD RED LED: FLASHING, BUZZER: BEEPING CONTINUOUSLY
FAULT BEEPING CONTINUOUSLY
ENVIRONMENT
OPERATING TEMPERATURE 0 C TO 40 C
HUMITDITY 0-95% (NON CONDENSING)
ACOUSTIC NOISE <40dB AT 1M
PHYSICAL
DIMENSIONS 343 x 135 x 208mm
