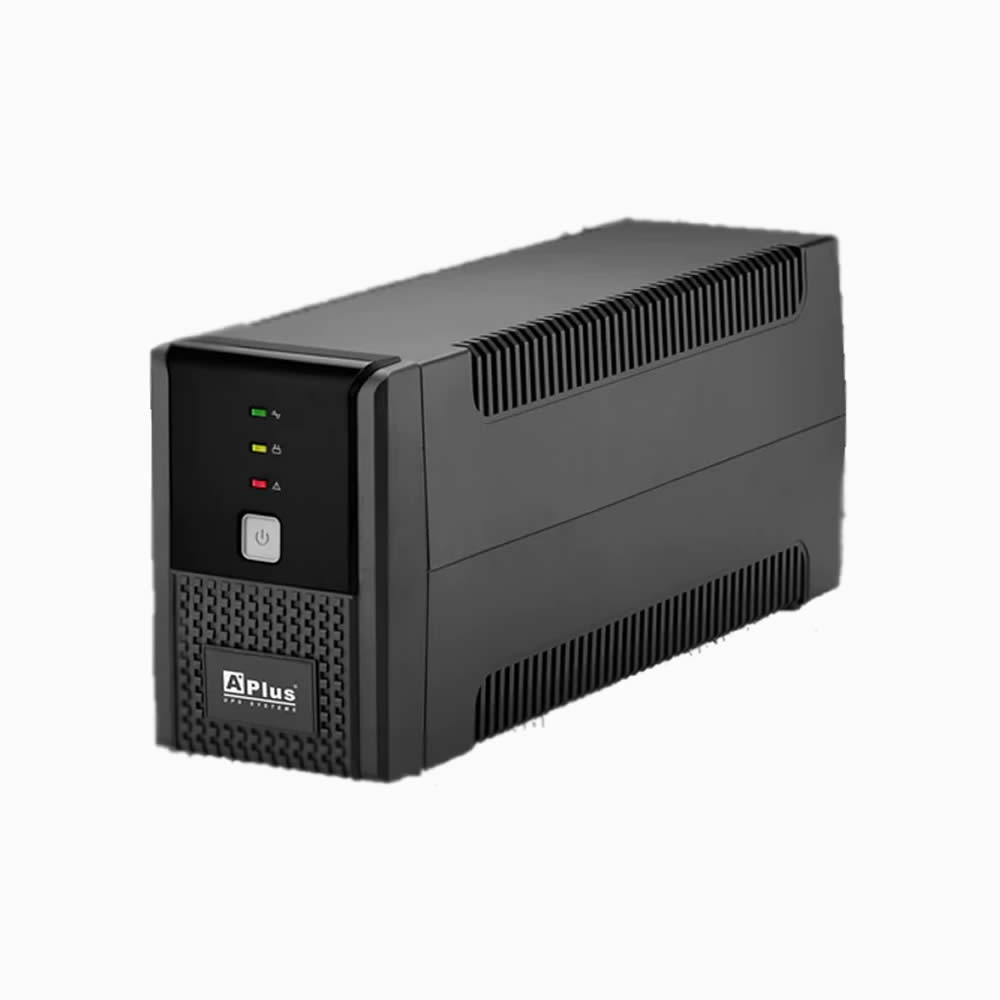

Enhance your power backup with the Aplus UPS 1500 VA Line Interactive. With versatile input options (110-120VAC or 200-240VAC) and a wide voltage range, it ensures stable output (110-120VAC or 200-240VAC 10%). Offering a simulated sinewave and rapid transfer time, it's a reliable safeguard. Compact (343 x 135 x 208mm), it operates silently and efficiently from 0 C to 40 C. Invest in power security today.
INPUT
VOLTAGE 110/115/120 VAC OR 200V/230/240 AC
VOLTAGE RANGE -30%+25%
FREQUENCY 50HZ OR 60Hz (AUTO SENSING)
OUTPUT
VOLTAGE REGULATION AC MODE/BATTERY NORMAL: 110/115/120 VAC OR 200V/230/240VAC +-10%
FREQUENCY AC MODE: 47-53Hz FOR 50Hz OR 57-63hZ FOR 60Hz; BATTERY MODE: 50Hz OR 60Hz +-1Hz
WAVEFORM SIMULATED SINEWAVE
TRANSFER TIME <6ms (TYPICAL)
BATTERY
VOLTAGE 24V DC
TYPE 12V/9AH*1PC
RECHARGE TIME 5 HOURS TO 90% AFTER COMPLETE DISCHARGE
SAFETY PROTECTION OVER CHARGE & OVER DISCHARGE PROTECTION
ALARM
BATTERY MODE TWO SHORT TONES EVERY 8 SECONDS
LOW BATTERY FOUR SHORT TONES EVERY SECOND
OVERLOAD RED LED: FLASHING, BUZZER: BEEPING CONTINUOUSLY
FAULT BEEPING CONTINUOUSLY
ENVIRONMENT
OPERATING TEMPERATURE 0 C TO 40 C
HUMITDITY 0-95% (NON CONDENSING)
ACOUSTIC NOISE <40dB AT 1M
PHYSICAL
DIMENSIONS 343 x 135 x 208mm
$6,290.00
INPUT
VOLTAGE 110/115/120 VAC OR 200V/230/240 AC
VOLTAGE RANGE -30%+25%
FREQUENCY 50HZ OR 60Hz (AUTO SENSING)
OUTPUT
VOLTAGE REGULATION AC MODE/BATTERY NORMAL: 110/115/120 VAC OR 200V/230/240VAC +-10%
FREQUENCY AC MODE: 47-53Hz FOR 50Hz OR 57-63hZ FOR 60Hz; BATTERY MODE: 50Hz OR 60Hz +-1Hz
WAVEFORM SIMULATED SINEWAVE
TRANSFER TIME <6ms (TYPICAL)
BATTERY
VOLTAGE 24V DC
TYPE 12V/9AH*1PC
RECHARGE TIME 5 HOURS TO 90% AFTER COMPLETE DISCHARGE
SAFETY PROTECTION OVER CHARGE & OVER DISCHARGE PROTECTION
ALARM
BATTERY MODE TWO SHORT TONES EVERY 8 SECONDS
LOW BATTERY FOUR SHORT TONES EVERY SECOND
OVERLOAD RED LED: FLASHING, BUZZER: BEEPING CONTINUOUSLY
FAULT BEEPING CONTINUOUSLY
ENVIRONMENT
OPERATING TEMPERATURE 0 C TO 40 C
HUMITDITY 0-95% (NON CONDENSING)
ACOUSTIC NOISE <40dB AT 1M
PHYSICAL
DIMENSIONS 343 x 135 x 208mm
